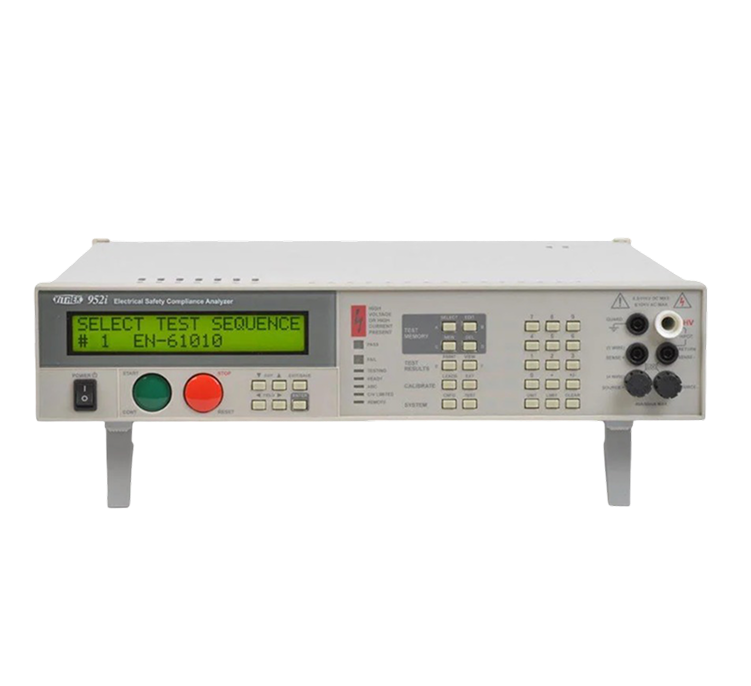

952i
- AC Hipot 20V – 6KV / 50mA
- DC Hipot 30V – 6.5KV / 50mA
- Leakage Resolution 100 pA
- IR Range Up to 4 TΩ
- Ground Bond 40A included
- Interfaces Ethernet, RS232, USB, Digital I/O, Optional GPIB Interface
The 952i adds 40-amp ground bond testing to the 951i — combining AC and DC hipot, insulation resistance, milli-ohmmeter, and full ground bond capability in a single instrument. The complete 4-in-1 safety compliance analyser.
Ground bond testing covers 100mA to 40A RMS across 20mS to 1000 second test times, with phase angle measurement separating resistive (in-phase) from reactive (out-of-phase) leakage components to distinguish capacitive coupling from true insulation leakage. It inherits all 95X DSP performance (50KV/second ramps, 100 pA leakage resolution, 20mS dwells, 100 tests × 100 steps), with multi-dwell across voltage levels without returning to zero and 964i HV Scanner pairing for up to 256 multi-point test configurations.
Overview
The 952i is the full-capability 95X at 6KV — AC hipot, DC hipot, insulation resistance, 4-wire milli-ohmmeter, and 40A ground bond, all in one instrument. The preferred choice for comprehensive electrical safety certification testing.
Specifications
- AC Hipot: 20V – 6KV, 50mA standard (100mA / 200mA options)
- DC Hipot: 30V – 6.5KV, 50mA
- IR Range: Up to 4 TΩ
- Ground Bond: 40A RMS (100mA – 40A output range)
- Leakage resolution: 100 pA
- 4-wire ohmmeter: 100µΩ – 100KΩ
- Ramp rate: Up to 50KV/second
- Dwell: As low as 20mS
- Phase angle measurement: In-phase and quadrature components
- Test memory: 100 tests × 100 steps
- HV scanner control: Up to 256 channels (964i)
- 30KVAC external option available
Additional Information
- Interfaces: Ethernet, RS232, Digital I/O, USB, optional GPIB
- Safety: GFI, SFI™, TLSS™
- Certification: EN 61010-1
- Made in USA
