Room Temperature Low Noise Amplifiers

Select Model

LNF-LNR19_34WA_SV

LNF-LNR19_34WA_SV

  • RF Bandwidth 19 – 34 GHz
  • Noise Temperature 115 K
  • Noise Figure 1.45 dB
  • Gain 37 dB
  • DC Power V = 5V, I = 50mA
  • RF Connectors WR34 waveguide
  • 19 to 34 GHz with 115 K noise temperature and 37 dB gain; packaged in a waveguide module for minimum insertion loss at these frequencies

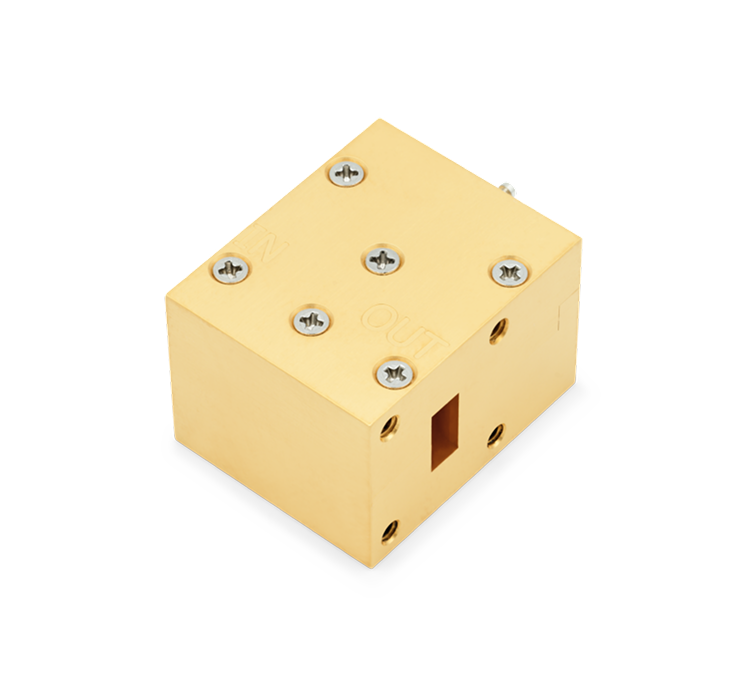

  • Gold-plated aluminium waveguide module (27.39 × 33.56 × 22.50mm), WR34 RF connectors, 2-pin turret DC connector
  • MMIC InP HEMT technology: same device platform as LNF’s cryogenic WR34 amplifier, specified for room temperature operation
  • Must be operated in a vacuum environment when below the dewpoint
  • Tested at 296 K before delivery. Test report included
Request Quote
