Room Temperature Low Noise Amplifiers

Select Model

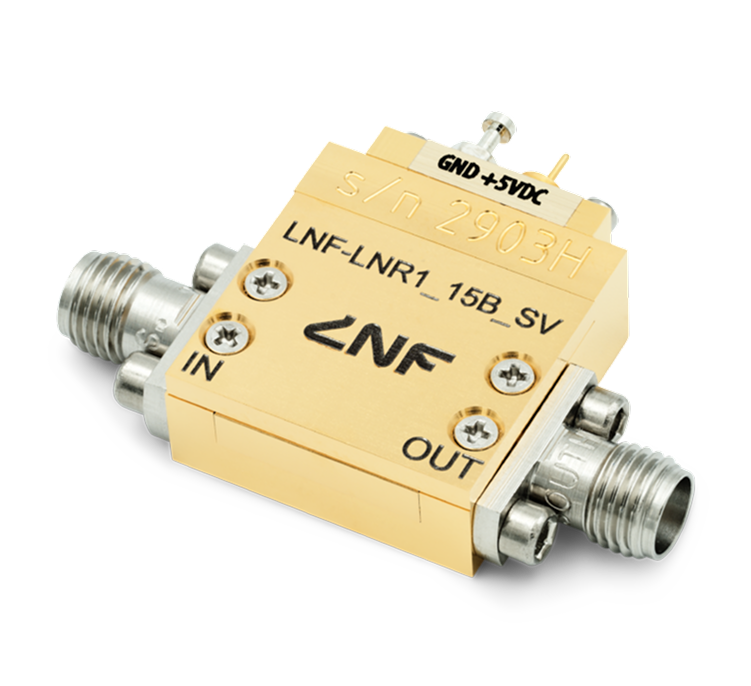

LNF-LNR1_15B_SV

LNF-LNR1_15B_SV

  • RF Bandwidth 1 – 15 GHz
  • Noise Temperature 57 K
  • Noise Figure 0.78 dB
  • Gain 36 dB
  • DC Power V = 5V, I = 50mA
  • RF Connectors Female SMA
  • Broadband room temperature LNA spanning 1 to 15 GHz. Uses LNF’s proprietary InP HEMT technology for best-in-class noise performance at ambient temperature
  • The room temperature counterpart to LNF’s cryogenic lineup, designed for systems where cooling to 4K is not possible but low noise is still required
  • Compact gold-plated aluminium coaxial module (19.87 × 19.6 × 7.8mm), SMA RF ports, 2-pin turret DC connector
  • MMIC technology ensures excellent unit-to-unit consistency for multi-channel deployments
  • Must be operated in a vacuum environment when below the dewpoint
  • Tested at 296 K before delivery. Test report included
Request Quote
