Room Temperature Low Noise Amplifiers

Select Model

LNF-LNR65_115WD_SV

LNF-LNR65_115WD_SV

  • RF Bandwidth 65 – 115 GHz
  • Noise Temperature 310 K
  • Noise Figure 3.16 dB
  • Gain 28 dB
  • DC Power V = 5V, I = 50mA
  • RF Connectors WR10 waveguide
  • The highest frequency room temperature amplifier in the LNF lineup, using WR10 waveguide packaging.

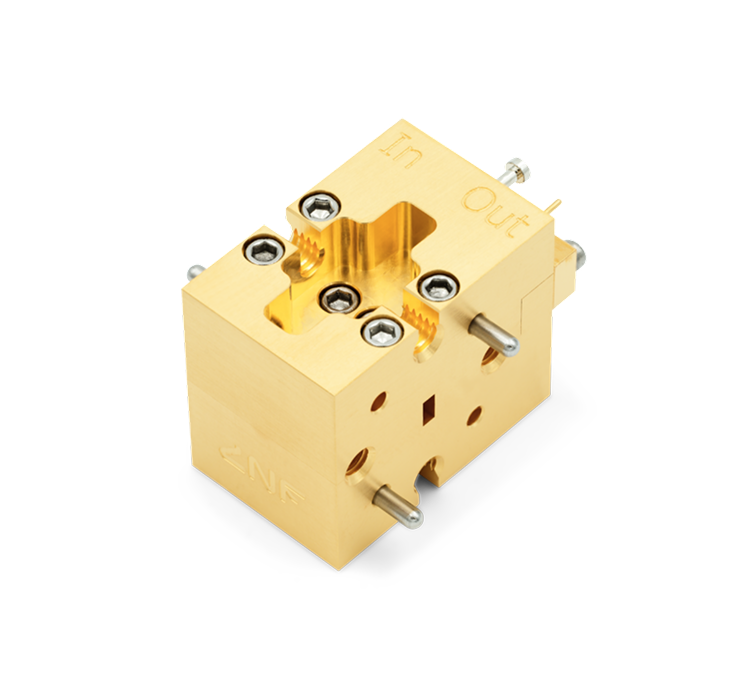

  • Compact gold-plated aluminium waveguide module (14.92 × 23.00 × 19.20mm), WR10 RF connectors, 2-pin turret DC connector
  • MMIC InP HEMT technology- LNF’s device platform extended to full W-band coverage at room temperature
  • Must be operated in a vacuum environment when below the dewpoint
  • Tested at 296 K before delivery. Test report included
Request Quote
