Room Temperature Low Noise Amplifiers

Select Model

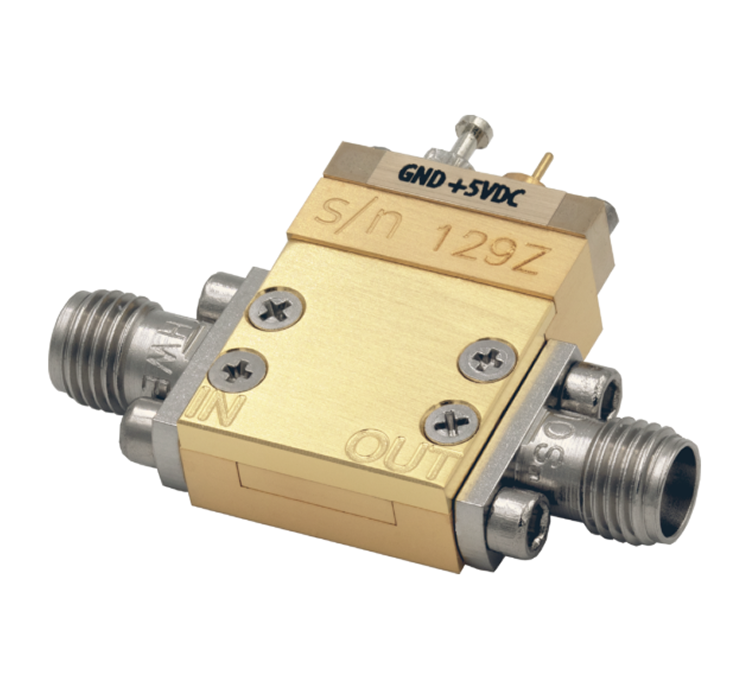

LNF-LNR26_62A_SV

LNF-LNR26_62A_SV

  • RF Bandwidth 26 – 62 GHz
  • Noise Temperature 200 K
  • Noise Figure 2.3 dB
  • Gain 35 dB
  • DC Power V = 5V, I = 35mA
  • RF Connectors 1.85mm coaxial
  • 26 to 62 GHz in a single compact coaxial module (17.80 × 15.15 × 6.80mm), covering one of the widest contiguous millimetre-wave bands available in LNF’s room temperature range
  • 1.85mm coaxial connectors cover the full bandwidth without waveguide transitions.
  • Compact form factor allows direct integration into mm-wave measurement rigs and compact receiver modules without waveguide flanges
  • MMIC InP HEMT technology, excellent unit-to-unit variation across the 36 GHz of covered bandwidth
  • Must be operated in a vacuum environment when below the dewpoint
  • Tested at 296 K before delivery. Test report included
Request Quote
