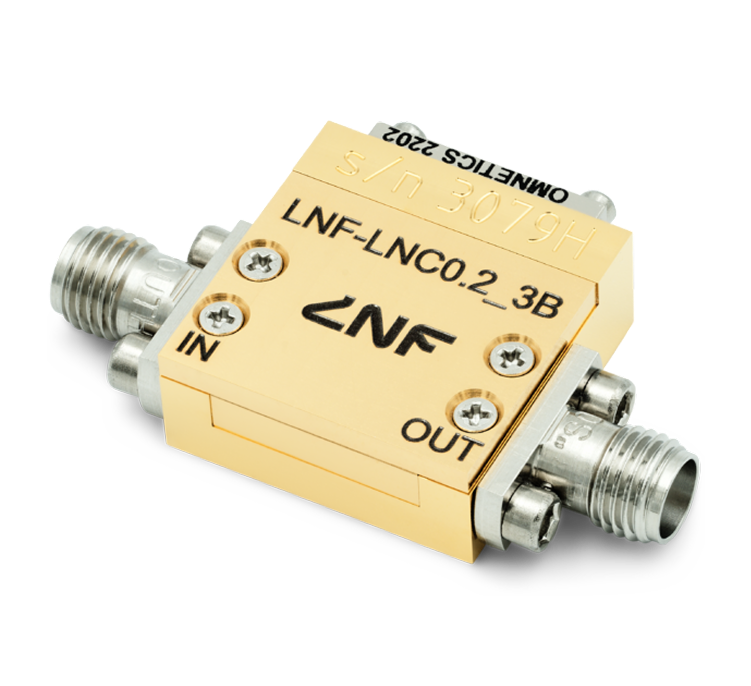

LNF-LNC0.2_3B

LNF-LNC0.2_3B

  • RF Bandwidth 0.2 – 3 GHz
  • Noise Temperature 1.6 K
  • Noise Figure 0.02 dB
  • Gain 30 dB
  • DC Power Vds = 1.1V, Ids = 23mA
  • RF Connectors Female SMA
  • Ultra-low noise cryogenic LNA using LNF’s proprietary InP HEMT technology. MMIC design ensures excellent unit-to-unit variation
  • Packaged in gold-plated aluminium coaxial module (19.87 × 19.6 × 7.8mm excluding connectors): SMA RF ports, 9-pin Female Nano-D DC connector
  • Single gate and drain supply, compatible with LNF-PS3b power supply and LNF-NANO9M DC connector
  • Must be operated in a vacuum environment when below the dewpoint
  • Tested at 296 K and 5 K before delivery. Full test report included
Request Quote
RELATED PRODUCTS

While you are here

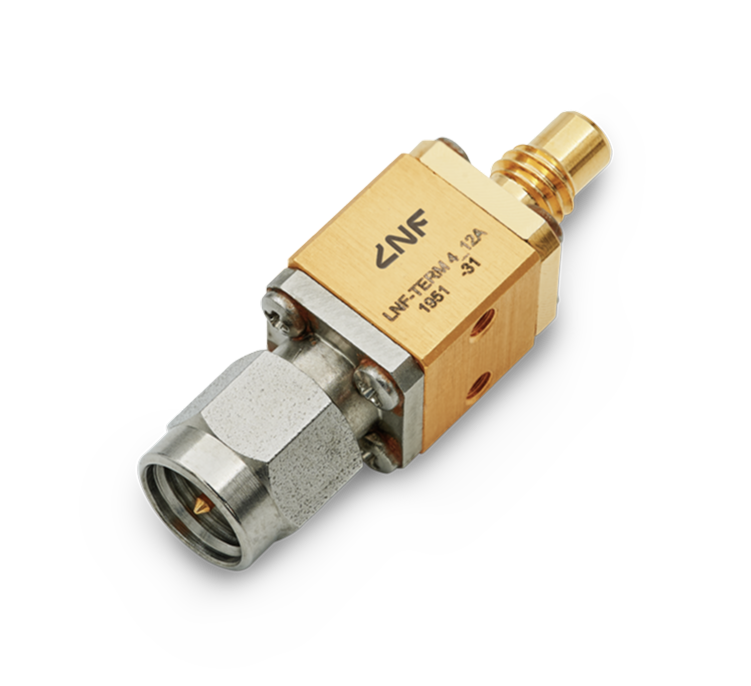

LNF-TERM 4_12A
LNF-TERM 4_12A
Cryogenic Isolators / Circulators
  • Function Cryogenic Termination for Circulator-to-Isolator Conversion
  • Return Loss >20 dB typical
View >

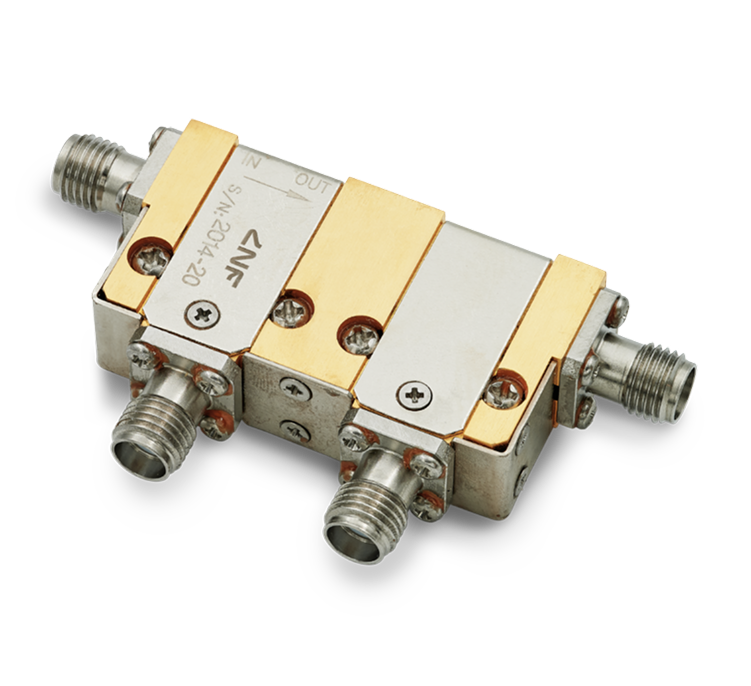

4-12 GHz Dual Junction Isolator/Circulator
4-12 GHz Dual Junction Isolator/Circulator
Cryogenic Isolators / Circulators
  • Frequency Range 4 – 12 GHz
  • Insertion Loss 0.4 dB typical
View >

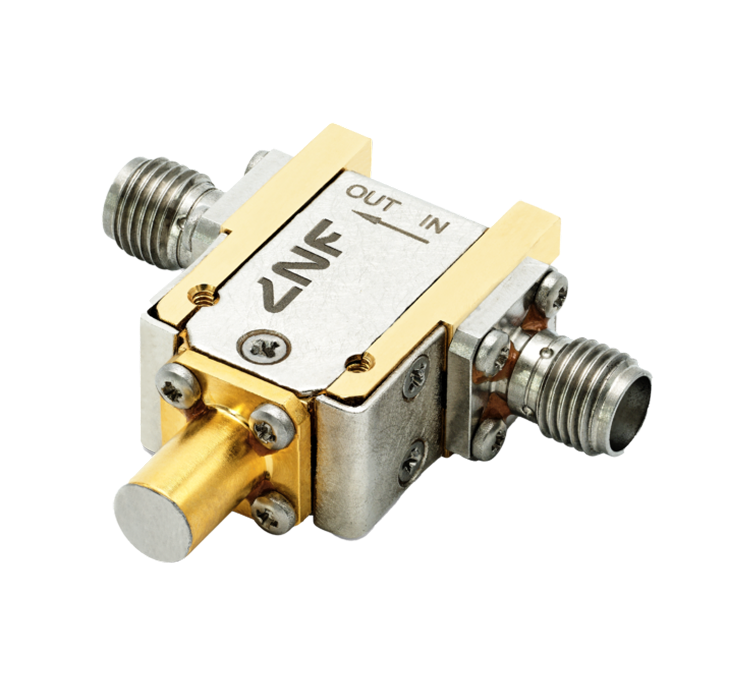

10-18 GHz Single Junction Isolator/Circulator
10-18 GHz Single Junction Isolator/Circulator
Cryogenic Isolators / Circulators
  • Frequency Range 10 – 18 GHz
  • Insertion Loss 0.3 dB typical
View >

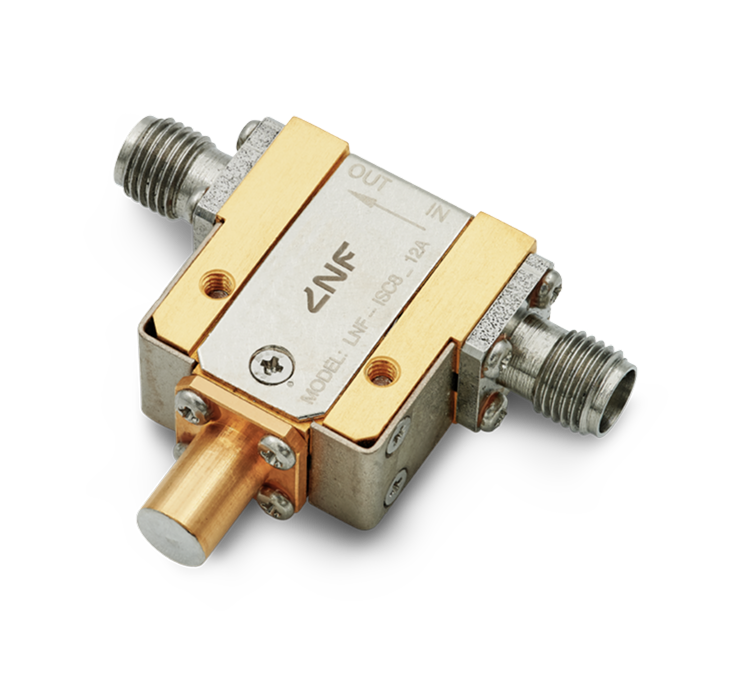

8-12 GHz Single Junction Isolator/Circulator
