Cryogenic Low Noise Amplifiers

Select Model

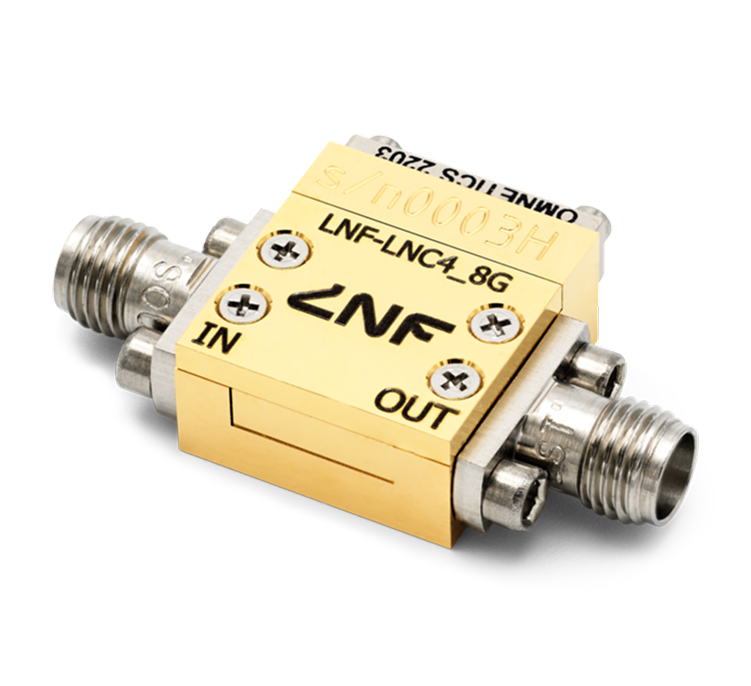

LNF-LNC4_8G

LNF-LNC4_8G

  • RF Bandwidth 4 – 8 GHz
  • Noise Temperature 1.5 K
  • Noise Figure 0.02 dB
  • Gain 39 dB
  • DC Power Vds = 0.6V, Ids = 13mA
  • RF Connectors Female SMA
  • The industry’s lowest noise temperature at 4-8 GHz — 1.5 K average noise temperature and 0.02 dB noise figure
  • Compact gold-plated aluminium module (17.00 × 15.80 × 7.80mm), smaller form factor than the standard LNF module.
  • SMA RF ports, 9-pin Female Nano-D DC connector, single gate and drain supply
  • Must be operated in a vacuum environment when below the dewpoint
  • Tested at 296 K and 5 K before delivery. Full test report included
Request Quote
RELATED PRODUCTS

While you are here

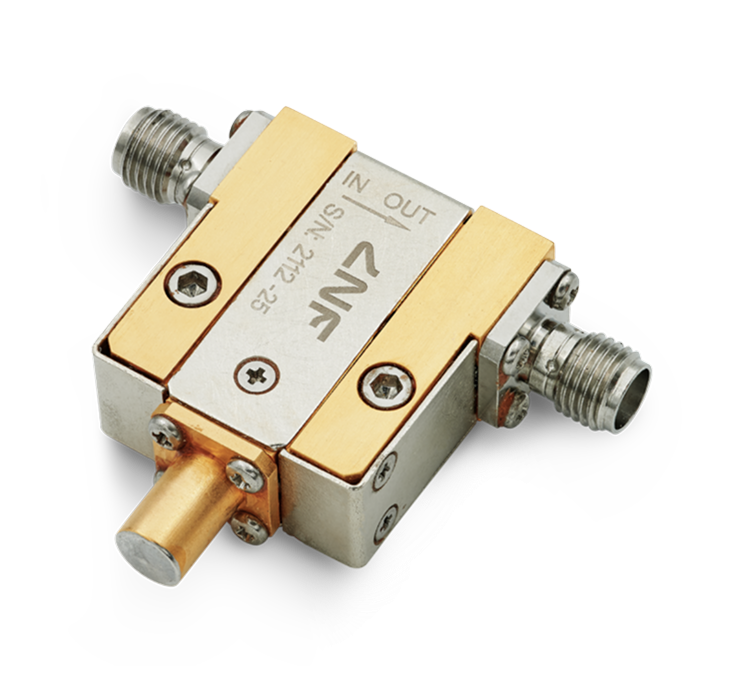

4-12 GHz Single Junction Isolator/Circulator
4-12 GHz Single Junction Isolator/Circulator
Cryogenic Isolators / Circulators
  • Frequency Range 4 – 12 GHz
  • Insertion Loss 0.2 dB typical
View >
10-18 GHz Single Junction Isolator/Circulator
10-18 GHz Single Junction Isolator/Circulator
Cryogenic Isolators / Circulators
  • Frequency Range 10 – 18 GHz
  • Insertion Loss 0.3 dB typical
View >

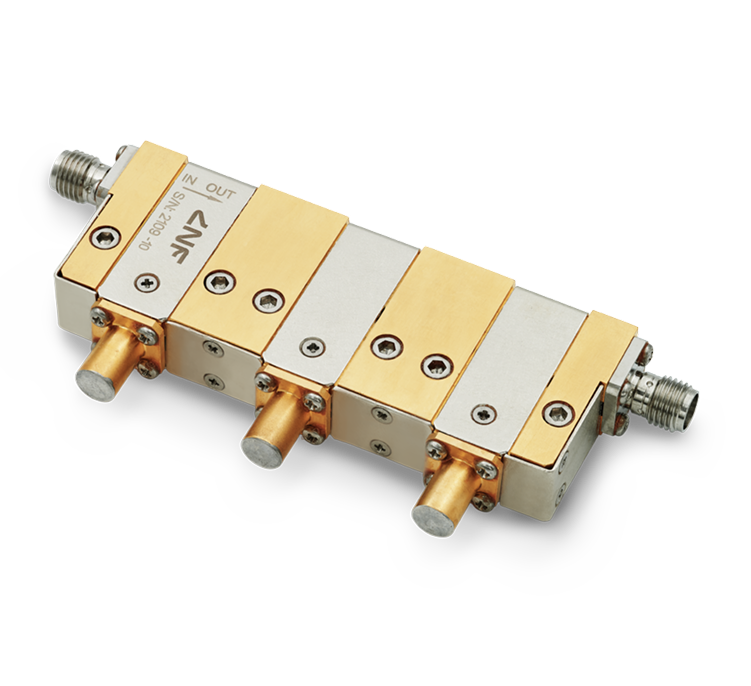

4-12 GHz Triple Junction Isolator/Circulator
