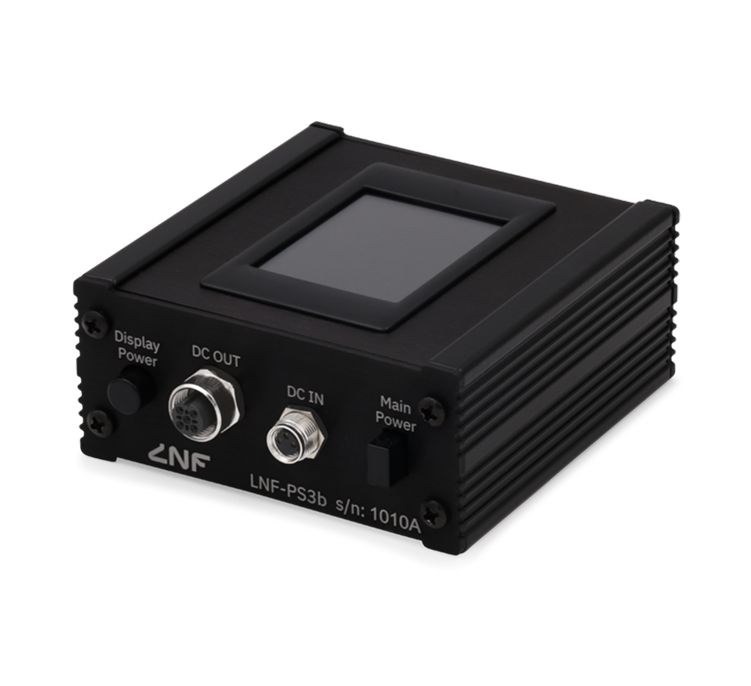

LNF-PS3b
LNF-PS3b
- Function Low Noise HEMT Power Supply
- Output Adjustable drain voltage, auto gate voltage regulation
- Display LCD (Vds and Ids)
- Power Source LNF-PBA Power Block
- Dimensions 98 × 44 × 99mm
- Weight 354g
- Compact low-noise bias supply designed specifically for LNF LNAs. The drain voltage regulated and adjustable over a wide range; gate voltage automatically and continuously adjusted to maintain a set drain current
- LCD display shows Vds and Ids for easy bias monitoring; Vg accessible via front-panel banana sockets for troubleshooting with a multimeter
- Drain voltage sense function compensates for bias wire resistance, which is important in cryostat setups where wire runs are long
- Display can be switched off for ultra-low noise operation in sensitive measurement environments
- Redesigned electronics with low-noise components throughout for improved performance over previous models
- Powered by LNF-PBA Power Block; includes 1.5m PBA cable and 2m DC output cable
