Cryogenic Low Noise Amplifiers

Select Model

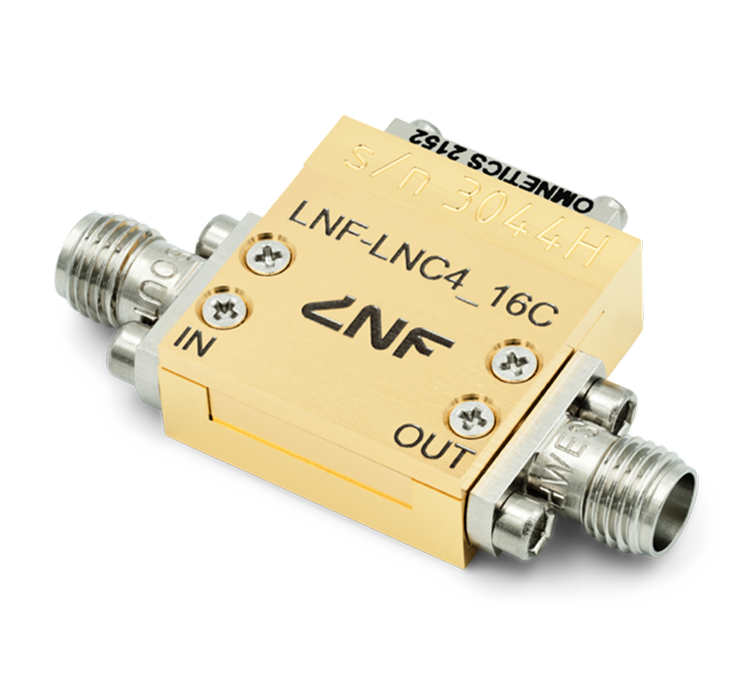

LNF-LNC4_16C

LNF-LNC4_16C

  • RF Bandwidth 4 – 16 GHz
  • Noise Temperature 3.1 K
  • Noise Figure 0.05 dB
  • Gain 36 dB
  • DC Power Vds = 1.1V, Ids = 16mA
  • RF Connectors Female SMA
  • Covers 4 to 16 GHz with 3.1 K noise temperature and 36 dB gain in a single module, eliminating the need for multiple narrow-band amplifiers
  • MMIC InP HEMT technology: Consistent performance across units for multi-channel system builds
  • Gold-plated aluminium coaxial module (19.87 × 19.6 × 7.8mm) with SMA RF ports, 9-pin Female Nano-D DC connector
  • Must be operated in a vacuum environment when below the dewpoint
  • Tested at 296 K and 5 K before delivery. Full test report included
Request Quote
