Cryogenic Low Noise Amplifiers

Select Model

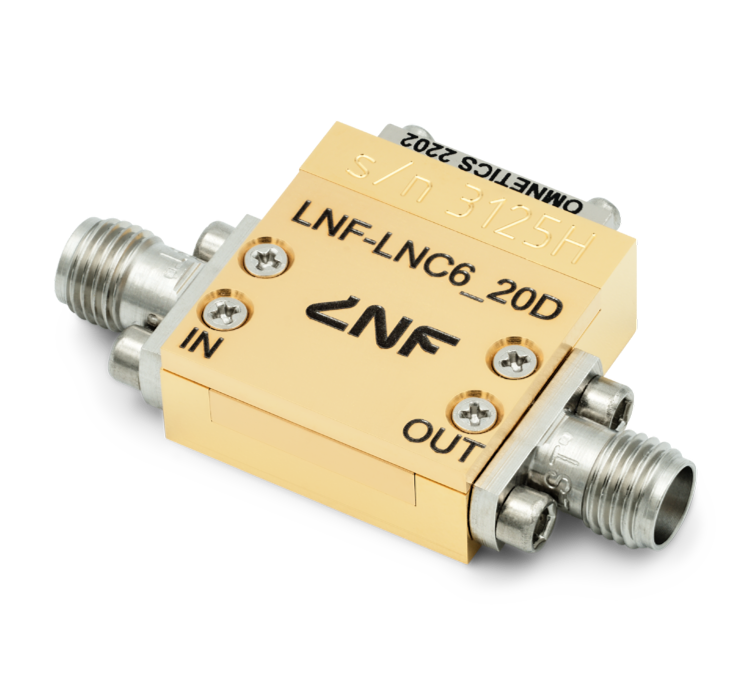

LNF-LNC6_20D

LNF-LNC6_20D

  • RF Bandwidth 6 – 20 GHz
  • Noise Temperature 3.8 K
  • Noise Figure 0.06 dB
  • Gain 32 dB
  • DC Power Vds = 1.2V, Ids = 18mA
  • RF Connectors Female SMA
  • 6 to 20 GHz coverage with 3.8 K noise temperature, suited to applications spanning microwave and lower millimetre-wave frequencies
  • MMIC InP HEMT technology: low unit-to-unit variation for repeatable multi-channel deployments
  • Gold-plated aluminium coaxial module (19.87 × 19.6 × 7.8mm): SMA RF ports, 9-pin Female Nano-D DC connector
  • Must be operated in a vacuum environment when below the dewpoint
  • Tested at 296 K and 5 K before delivery. Full test report included
Request Quote
